CO2 Laser Systems

OmniGuide Surgical offers a variety of options to meet the unique needs of different surgical specialties. Healthcare providers are able to customize their choice of lasers, fibers, and handpieces to meet their unique needs.

Intelliguide Laser System

BEACON Advanced Energy Laser System

MAXIMUM VERSATILITY FOR PRECISE CO2 ENERGY DELIVERY

The BEACON™ Advanced Energy Laser combines our industry-leading Enhanced Safety Fibers with free beam energy delivery, giving you the versatility to choose.

System Features:
  • Versatile: Industry-leading enhanced safety fibers + Line of Sight (LOS) capabilities.
  • Easy-to-Use: OR workflow inspired user interface with smartphone like navigation.
  • Built for Performance: Innovative design ensures portability with integrity. Multiple laser modes enable desired tissue interaction.
BEACON Performance Specifications

Versatile:

Dual laser options to accommodate surgical preferences

  • Designed to exclusively support OmniGuide’s polymer-based Enhanced Safety Fibers
  • Line of Sight option provides multiple configurations via lockable Articulating Arm

Easy-to-Use

User friendly interface

  • High-Definition display screen with advanced range of motion OR workflow inspired interface
  • Intuitive, smartphone like navigation
  • Audio & Visual guidance features to enhance user experience

Built for Performance

Portability with integrity

  • Insulation – internal components independent of frame
  • Enables portability without inconvenience of misalignment

Multiple laser modes for desired tissue interaction

  • 2 Waveform Modes: Continuous wave & SuperPulse
  • 3 Output Modes: Continuous, Single Pulse, & Repeat Pulse
BEACON Technical Specifications
Part Numbers 420060-AA: 60W Laser with Articulating Arm
420030-AA: 30W Laser with Articulating Arm
420031: AccuBeam EasySpot Micromanipulator
420070: AccuBeam MicroSpot Micromanipulator
420035: Incisional Hand Piece – 75mm
420037: Incisional Hand Piece – 125mm
420039: Incisional Hand Piece – 250-450mm
420046: Direct Coupler
* Note: additional Mounts for MicroManipulators, Incisional Hand Piece lengths, Adapters and Lens Assemblies available upon request
Laser Wave Length 10,600 nm
Output Power Fiber Adapter: 30 W Maximum
Articulating Arm: 60 W Maximum
Connectors Fiber Adapter: custom ST connector
Articulating Arm: 15/16-12 female thread
Weight 72kg (159lbs – laser only)
Size (WxDxH) 49 x 49 x 144 cm (20” x 20” x 59”)
Operating Voltage/Current: 120 / 240 volts

Related Downloads and Additional Resources

Intelliguide Laser System

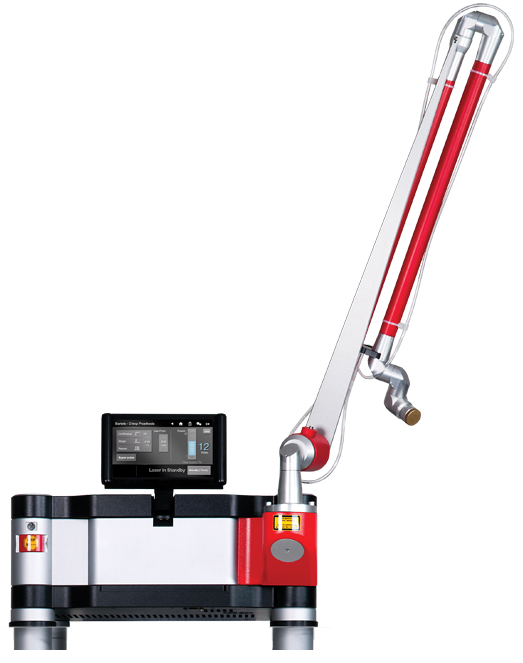

C-LAS Line of Sight CO2 Laser System

PRECISE. CONTROLLED. REPRODUCIBLE.

C-LAS joins OmniGuide’s CO2 Laser Platform Technologies as a trusted and cost- effective laser option for both hospitals and clinics. Precision energy delivery is achieved via a 7-joint spring balanced articulated arm. When paired with our suite of laser accessories, C-LAS allows you to deliver CO2 energy in a controlled, reproducible fashion regardless of application.

C-LAS Technical Specifications
Part Number FELS-25A-LS
Type of Laser  CO2, RF Excited, excited laser tube, which produces a maximum output of about 30 watts
Wavelength 10.6 µm
Transmission System Articulated Arm (Line of Sight)
Laser Exposure Modes Continuous, Repeat, Single and SuperPulse
Spot size and Divergence at the tip See product insert
Control Panel Intuitive, full color touch screen with 360 articulation
Dimensions (Laser) 13.5”H x 20.3”W x 20.8”D (34.3 x 51.6 x 52.8cm)
Weight (Laser) 70 lb (32 kg)
Dimensions (Cart) 39”H x 22.5”W x 24.5”D (99.1 x 57.2 x 62.2 cm)
Weight (Cart) 65 lb, (29.5 Kg)
Electrical 110-240 V / AC with an input current of 5A at 230V or 10A at 110V
Warranty 1 Year (extended service plan options available)

Related Downloads and Additional Resources

Intelliguide Laser System

Intelliguide CO2 Laser System

The Intelliguide laser system is a precision CO2 laser system. The Intelliguide combines with our OmniGuide Enhanced Safety Fibers and our specialty-specific handpiece instrumentation to complete OmniGuide Surgical’s advanced energy delivery system. It offers multiple modes of  operation including continuous wave, single pulse, and repeat pulse in both non-superpulse and superpulse modes.

Touch screen control simplifies laser operation, enabling  programmable laser settings and single button actuation. Throughout the procedure, the system maintains a controlled flow of helium through the hollow core laser fiber, keeping the core cool and ensuring the surgical field is kept clear of blood, smoke and other fluids. The Intelliguide automates and simplifies key laser operations, promoting efficiency and safety.

Intelliguide Technical Specifications
Type of Laser  CO2, RF Excited, air cooled with quiet fans
Wavelength 10.6 µm
Transmission System Fiber
Laser Exposure Modes CW: 1-20W Single Pulse: 40ms-500ms, Repeat Pulse with Ontime: 40ms-500ms SuperPulse; 1-10W Single Pulse: 40ms-500ms,
Repeat Pulse with Ontime: 40ms-500ms
Spot size and Divergence at the tip See fiber product insert
Control Panel Intuitive, full color touch screen with 360 articulation, integrated gas management and surgeon presets
Dimensions (Laser) 13.5”H x 20.3”W x 20.8”D (34.3 x 51.6 x 52.8cm)
Weight (Laser) 69 lb (31.3 Kg)
Dimensions (Cart) 39”H x 22.5”W x 24.5”D (99.1 x 57.2 x 62.2 cm)
Weight (Cart) 65 lb, (29.5 Kg) (does not include gas tanks)
Electrical 110VAC, 10A, 50 or 60 Hz (220V, 5A, 50 or 60 Hz)
Warranty 1 Year (extended service plan options available)

Related Downloads and Additional Resources
