ScopeLine Endoscopes

LISA Laser’s portfolio of endourological endoscopes are designed for compatibiltiy with our Holmium & Thulium lasers and include Uretero-Renoscopes, Laser Resectoscopes and Nephroscopes.

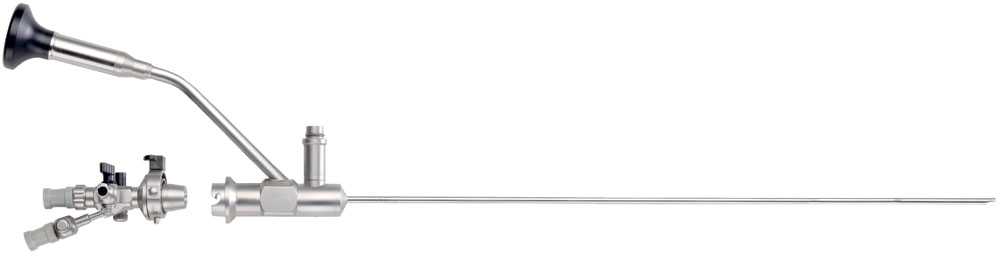

URxScope Uretero-Renoscope

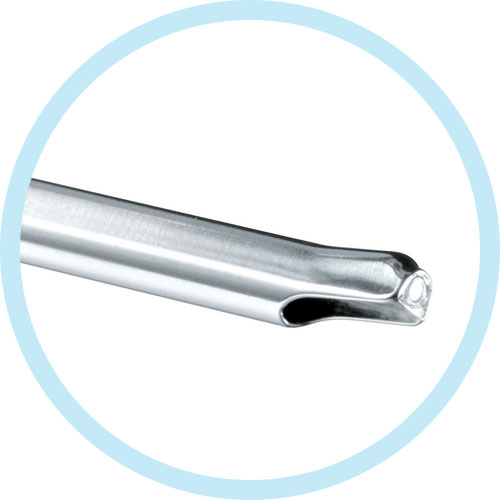

For smooth insertion and ideal vision the distal tip received a new atraumatic design. Camera focus and image quality is stable and independent of any deflection of the instrument. Handling is quick and easy due to the ergonomic locking/unlocking of the instrument bridge and the unique click-lock mechanism.



Key Features:
  • Outstanding performance in image quality, insertion and irrigation
  • Safe, reliable, robust, easy to clean
  • Durable design for extended life time, resulting in low cost of ownership
  • Easy to use click-lock mechanism
  • Lithotripsy simplified: straight channel for rigid lithotripsy probe and laser fiber
  • Highly optimized distal tip design allows smooth insertion into ureteric orifices
  • Strong irrigation flow
  • Direction of view (DOV) 8° towards working channel
  • Autoclavable for 5 min. @ 134 °C
  • Semi-flexible sheath allows 15° bending in all directions at full lifetime
  • Made in Germany
URxScope Technical Specifications

Uretero-Renoscope including detachable instrument bridge

Uretero-Renoscope Working channel capacity** Field of View Part number
URxScope 6.0 F 310 1 x 4 F or 2 x 2.4 F 100° 101 503 428
URxScope 6.0 F 425 1 x 4 F or 2 x 2.4 F 100° 101 503 429
URxScope 7.5 F 310 1 x 5 F or 2 x 3.0 F 85° 101 503 430
URxScope 7.5 F 425 1 x 5 F or 2 x 3.0 F 85° 101 503 431

** Single working channel for the insertion of either 1 or 2 instruments

Accessories Description Part number

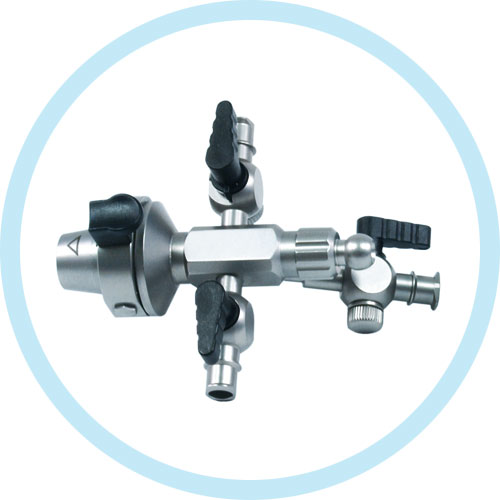

URxScope Instrument Bridge To all URS mentioned above 101 503 434
Three Slot Membrane disposable, unsterile, 1 package à 10 pieces 101 503 630
Sealing Caps, for fibre fixation disposable, 1 package à 10 pieces 101 503 499
Stop cock plugs* steel, pack of 12 101 503 633
Lubricant PARALIQ GB 363* 40 g 101 503 634
Cleaning Brush for Side Port* of instrument bridge, colour code: white 101 503 488
Cleaning Brush for Main Port* of instrument bridge, colour code: blue 101 503 489
Cleaning Brush for Working channel* of URxScope 7,5Fr 101 503 635
Cleaning Brush for Working channel* of URxScope 6Fr 101 503 636
Reprocessing tray for URxScope*   101 503 637

* Optional

CE acc. Council Directive 93/42/EEC. U.S. federal law restricts these devices to sale by or on the order of a physician. Specifications are subject to change without notice.

Related Downloads and Additional Resources

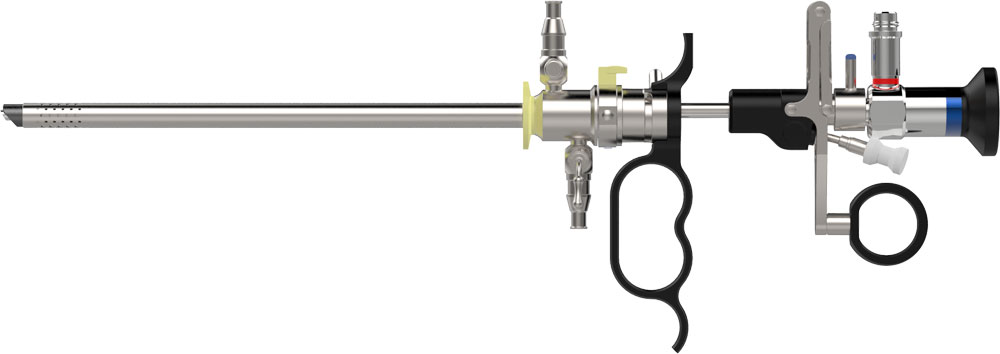

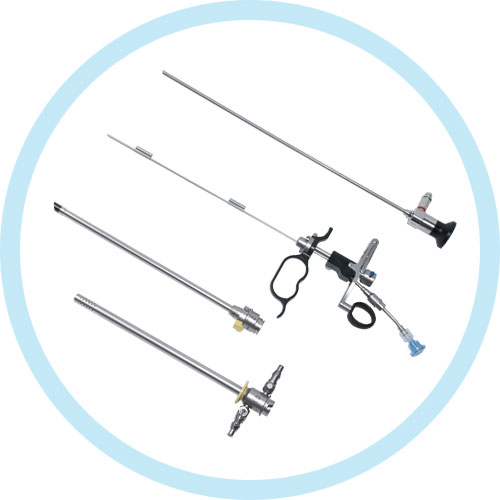

RexScope Laser Resectopscope and Telex 4mm telescope

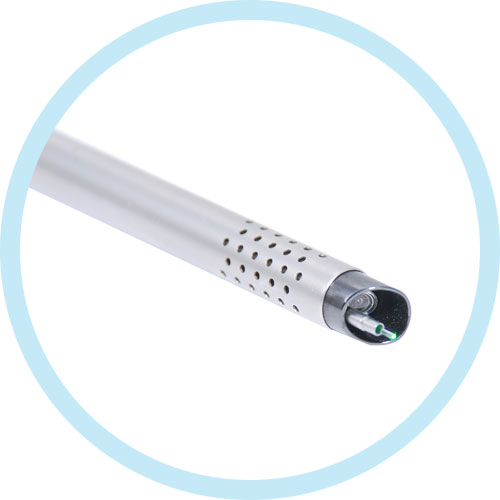

RexScope – continuous flow rotating laser resectoscope designed for the use with bare ended laser fibers. Fiber guidance is optimized from inlet to outlet for the protection and pointing stability of the laser fiber. Characterizing features of this laser instrument are safe and comfortable handling, easy assembly and cleaning, best vision and long lifetime.

Telex – 4 mm telescopes for RexScope



Key Features:
  • Perfectly balanced high quality continuous flow rotating laser resectoscope
  • Passive action working element optimized for front firing (bare ended) laser fibers
  • Smooth click-lock connection
  • HD compatible 4 mm telescopes
  • Autoclavable for 5 min. @ 134 °C
  • Made in Germany
RexScope Technical Specifications
Description Part number
RexScope laser working element, w/o laser fibre guide tube 101 503 472
RexScope outer sheath 26F 101 503 484
RexScope inner sheath 24F 101 503 483
RexScope standard obturator 101 503 485
RexScope visual obturator 101 503 360
RexScope laser fibre guide tube w/o retractor for RigiFib laser fibre (OD = 0.8 mm) 101 503 474
RexScope laser fibre guide tube w/o retractor for RigiFib 800 laser fibre (OD = 1.2 mm) 101 503 476
RexScope laser fibre guide tube w/o retractor for RigiFib 1000 laser fibre (OD = 1.4 mm) 101 503 477
RexScope laser fibre guide tube with retractor for RigiFib laser fibre (OD = 0.8 mm) 101 503 478
RexScope laser fibre guide tube with retractor for RigiFib 800 laser fibre (OD = 1.2 mm) 101 503 480
RexScope laser fibre guide tube with retractor for RigiFib 1000 laser fibre (OD = 1.4 mm) 101 503 481
TuohyBorst, for fibre fixation, single use, 1 package á 25 pieces 200 001 030
Sealing caps, for fibre fixation, disposable, 1 package á 10 pieces 101 503 499
Telex 30-4-S, telescope: 4 x 302 mm, DOV 30° 101 503 466
Telex 12-4-S, telescope: 4 x 302 mm, DOV 12° 101 503 467
Swiveling fibre inlet short, connects to working element* 101 503 473
Swiveling fibre inlet short, connects to working element* 101 503 528
Lubricant PARALIQ GB 363* 40 g 101 503 634

* Optional

CE acc. Council Directive 93/42/EEC. U.S. federal law restricts these devices to sale by or on the order of a physician. Specifications are subject to change without notice.

Related Downloads and Additional Resources

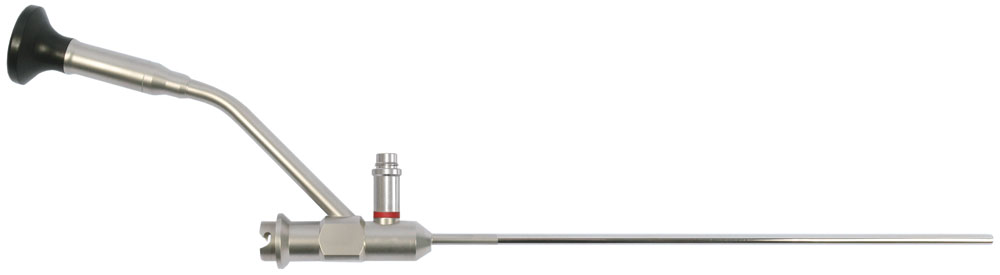

NexScope Nephroscope and Mini Nephroscope

Key Features:
  • Outstanding performance: contrast enhanced image bundle, best vision
  • Safe and reliable: robust, tightly sealed, laser welded, easy to use and to clean
  • Direction of view ideally aligned at 8°
  • Strong irrigation flow enables high stone-free rates
  • Long lifetime for lowest cost of ownership
  • Lightweight design
  • Detachable instrument bridge for optimized cleaning and inspection
  • Compatible with most popular laser and lithotriptor systems
  • Autoclavable: 5 min. @ 134 °C
  • Made in Germany
NexScope Technical Specifications
NexScope Description Part number
NexScope 19 F 220 working channel 10 F, field of view 84° 101 503 437

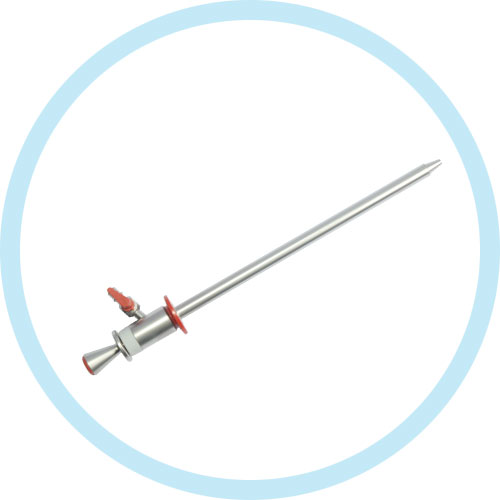

NexScope Sheath 24 F with obturator, colour code: red 101 503 440
NexScope Cleaning Brush, Working Channel 10 F colour code: blue 101 503 486



Mini NexScope Description Part number
Mini NexScope 13.5 F 220 working channel 6 F, field of view 84° 101 503 435
Mini NexScope 13.5 F 320 working channel 6 F, field of view 84° 101 503 436
NexScope Sheath 18 F with obturator, colour code: yellow 101 503 439
NexScope Cleaning Brush, Working Channel 6 F colour code: white 101 503 487



Consumables and accessories for NexScope and Mini NexScope

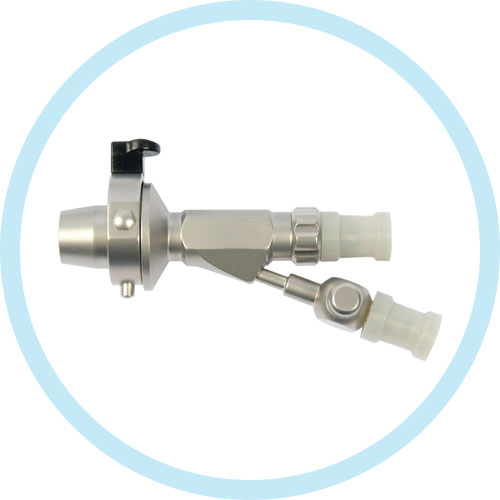

NexScope Instrument bridge for NexScope and Mini NexScope 101 503 438
Cleaning Brush for Side Port* of instrument bridge, colour code: white 101 503 488
Cleaning Brush for Main Port* of instrument bridge, colour code: blue 101 503 489
Duck Bill Valves disposable, 1 package of 10 pieces 101 503 498
Sealing caps, for fibre fixation disposable, 1 package of 10 pieces 101 503 499
Stop cock plugs, single use* 1 package of 10 pieces 101 503 509
Lubricant PARALIQ GB 363* 40 g 101 503 634

* Optional

CE acc. Council Directive 93/42/EEC. U.S. federal law restricts these devices to sale by or on the order of a physician. Specifications are subject to change without notice.

Related Downloads and Additional Resources
